2025-07-26AK-FYDS負壓循環帶式過濾機
AK-FYDS Vacuum Belt Filter
一、性能、特點及用途--Performance,characteristics and application
多機床組合加工首選，通過負壓真空的過濾方式，能滿足大流量多機床的使用切削液要求。
Multi-machine Tool Combination Processing Is Preferred, Through The Negative Pressure Vacuum Filtration Method, Can Meet The Large Flow Of Multi-machine Tool Using Cutting Fluid Requirements.

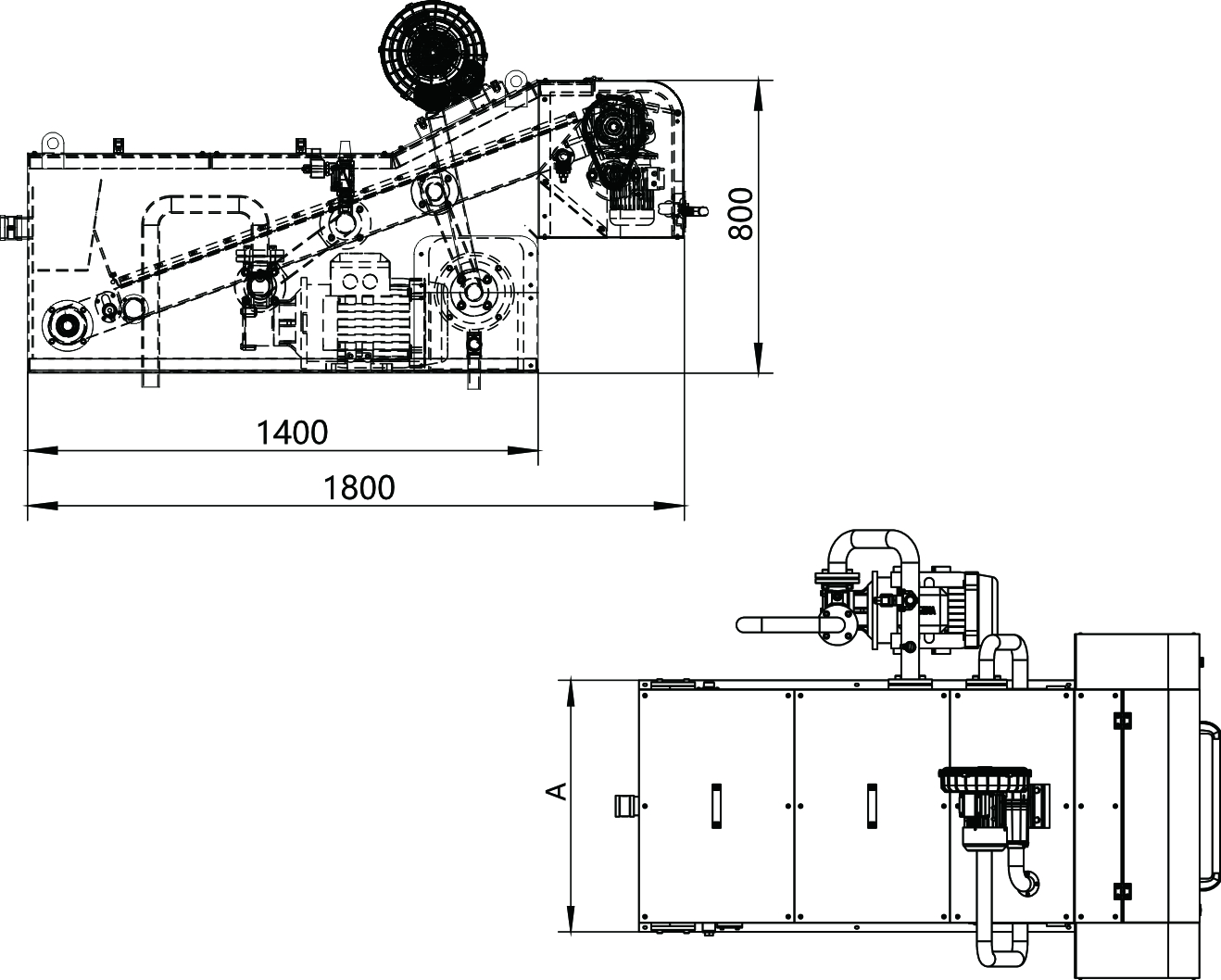

二、主要技術參數與選型--Main technical parameter and selection
名稱 Name | 型號 Number | A | 流量Flow Rate(L/min) | 濾紙寬度 Width of paper(mm) | 電機功率P(kW) Motor Power P(kW) | |
| 切削液 | 切削油 | |||||
AK-FYDS負壓循環帶式過濾機 | AK-FYDS-200 | 800 | 200 | 140 | 800 | 0.25 |
| AK-FYDS-300 | 1080 | 300 | 200 | 1000 | ||
