AK-SQGY Double Switch High Pressure Filter
一、性能、特點及用途--Performance,characteristics and application
AK-SMF管路過濾器由兩只單過濾桶、兩只單向閥、換向閥、發訊器等組成，它可在系統不停機的狀況下更換濾芯，適用于連續工作的中壓液壓系統。當其中一只過濾筒的濾芯在工作過程中堵塞至壓差發訊器規定壓力值時，發訊器動作，它可按上電源及提示器的提醒人們應該換此濾芯。更換濾芯時，只要旋轉轉向手柄到另一位置后，備用的過濾筒開始工作，旋開已堵塞的過濾筒放油螺塞放完油后，再旋下外殼，即可更換濾芯。
The AK-SMF pipeline filter consists of two single filter buckets, two check valves, reversing valves, transmitters, etc. It can replace the filter element without stopping the system, and is suitable for medium pressure hydraulic systems that work continuously.When the filter element of one filter cartridge is blocked in the working process to the pressure value specified by the differential pressure transmitter, the transmitter acts, which can press the power supply and the prompter to remind people that the filter element should be replaced. When replacing the filter element, as long as the steering handle is rotated to another position, the spare filter cartridge begins to work, unscrew the oil drain plug of the blocked filter cartridge, and then unscrew the shell to replace the filter element.
二、主要技術參數與選型--Main technical parameter and selection
型號 Model Number | 公稱流量 L/min | 過濾精度 μm | 公稱壓力 Mpa | 壓力損失 Pressure Loss | 發訊裝置 Signaling Device | 通徑 mm | 連接方式 Connection Mode | 濾芯型號 Filter Element Type | |
AK-SQGY- D30X | 160 | 5,10,20 | 6.3 | Initial | Max | 24V 220V | 螺紋 Screw thread | KH0160D* BN3HC | |
AK-SQGY- D100X | 330 | ≦0.8 | 0.5 | KH0330D* BN3HC | |||||

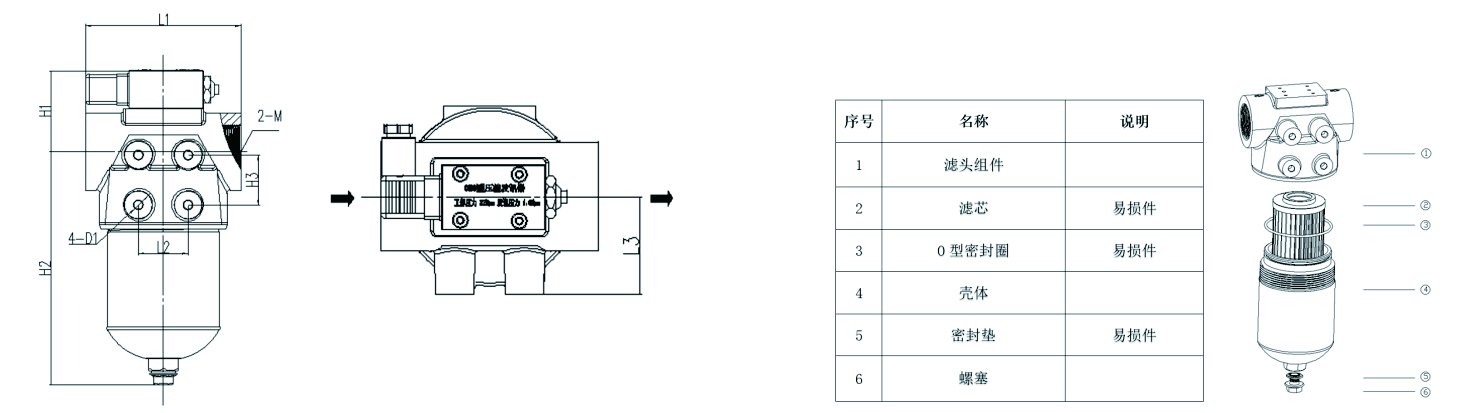

型號 Model Number | H | H1 | H2 | L | L1 | L2 | A | a | B | b | M | D | H | C | E | L3 |
AK-SQGY- D30X | 273 | 203 | 52 | 180 | 116 | 66 | 118 | 80 | 170 | 145 | M27x2 | M8 | 10 | 12.5 | 19 | 41 |
AK-SQGY- D100X | 362 | 292 | 80 | 246 | 163 | 93.5 | 166 | 135 | 230 | 190 | M33x2 | M10 | 15 | 20 | 16 | 60 |
